China Resistance Wire 0cr21al6 Heating Electric Resistance For Industrial Oven

  • 1
  • 2

Brand Name : Tankii

Model Number : FeCrAl

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 30KG

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000kg/month

Delivery Time : 5-30 days

Packaging Details : spool，coil

Application : Heating

Shape : strip,ribbon

Material : Iron-Chromium-Aluminium Alloy

Chemical composition : Fe Cr Al

Dimensions : 0.05-12mm

Surface : acid white/oxidized

Contact Now

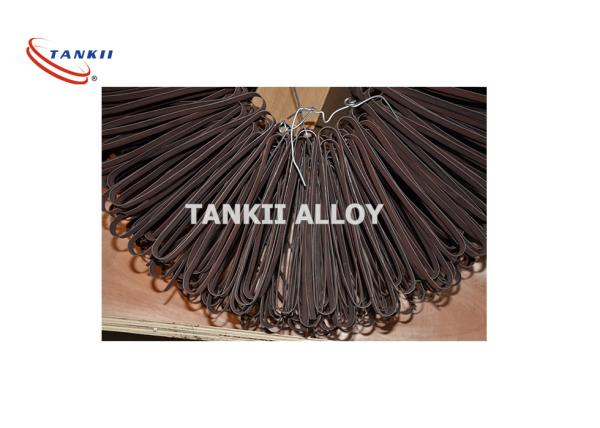

China Resistance Wire 0cr21al6 Heating Electric Resistance for Industrial Oven

0Cr21Al6

(Common Name:0Cr21Al6)

0Cr21Al6is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.

Typical applications for 0Cr21Al6 are used in electric ceramic cooktop,industrial furnace,heaters and catalytic purifier.

Normal composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.06 0.025 0.025 0.70 Max 1.0 19.0~22.0 Max 0.60 5.0~7.0 Bal. -

Typical Mechanical properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
520 720 20

Grade
Highest temperature
Resistivity
Melting point
Tensile strength
Elongation
0Cr21Al4
1100ºC
1.23±0.06μΩ.m
1500ºC
750
≥12
0Cr25Al5
1250ºC
1.42±0.07μΩ.m
1500ºC
750
≥12
0Cr23Al5
1300ºC
1.35±0.06μΩ.m
1500ºC
750
≥12
0Cr21Al6NbCo
1350ºC
1.43±0.07μΩ.m
1510ºC
750
≥12
0Cr27Al7Mo2
1400ºC
1.53±0.07μΩ.m
1520ºC
750
≥10

China Resistance Wire 0cr21al6 Heating Electric Resistance For Industrial OvenChina Resistance Wire 0cr21al6 Heating Electric Resistance For Industrial Oven
