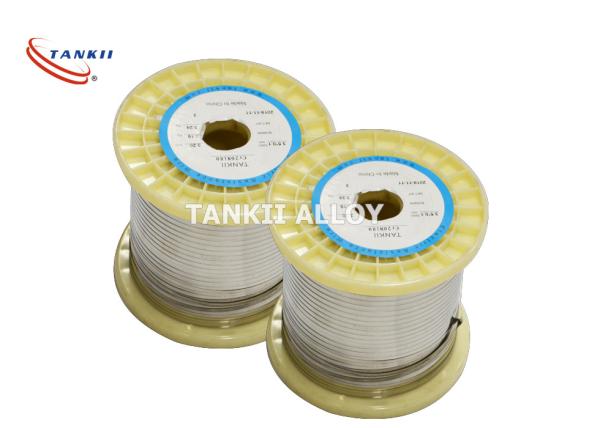

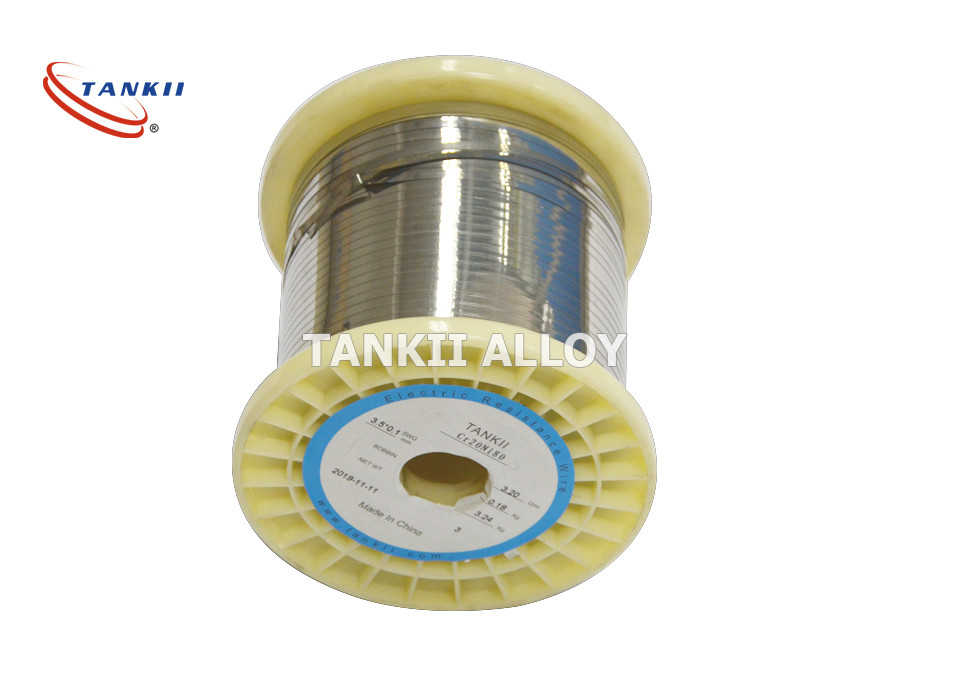

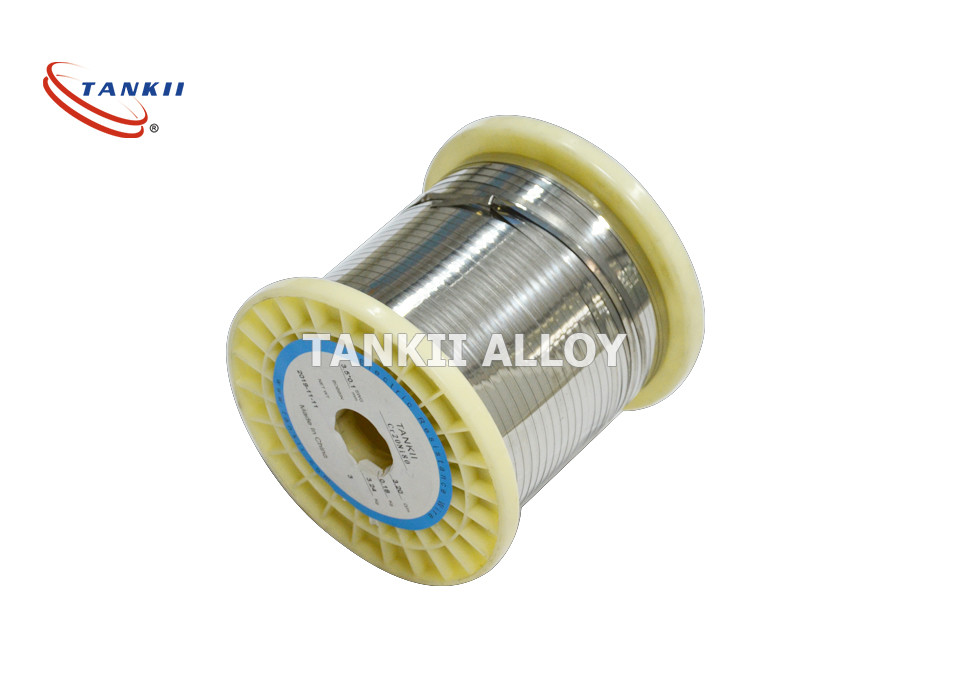

Ni80Cr20/Nikrothal 8MWS-650 bright electric resistance ribbon
NiCr 80/20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
(Common Name: Ni80Cr20, Nikrothal 8, MWS-650, NiCrA,Tophet A, HAI-NiCr 80, Chromel A, Alloy A, Alloy 650, N8, Resistohm 80, Stablohm 650, Nichorme V, Nikrothal 80.)
Nichrome Rod/Nichrome Wire (NiCr 80/20)
Chemical Composition: Nickel 80%, Chrome 20%
Condition: Bright/Acid white/Oxidied Color
Diameter: 0.018mm~1.6mm in spool, 1.5mm-8mm packing in coil, 8~60mm in rod
Nichrome Round Wire: Diameter 0.018mm~10mm
Nichrome Ribbon: Width 5~0.5mm, thickness 0.01-2mm
Nichrome Strip: Width 450mm~1mm, thickness 0.001m~7mm
Diameter: 1.5mm-8mm packing in coil, 8~60mm in rod
Grade: Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe, Ni30Cr20
Ni80, Ni70,Ni60, Ni40,
Nichrome's metallurgical structure confers them a very good plasticity when cold.
Production Standard: ASTM B603, DIN 17470, JIS C2520, GB/T1234.
Our advantage:High quality,short delivery time,small MOQ.
Characteristics:Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
Usage:Resistance heating elements;Material in metallurgy;Household appliances;Mechanical manufacturing and other industries.
Normal composition%
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max |
| 0.03 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 20.0~23.0 | Bal. | Max 0.50 | Max 1.0 | - |
Typical Mechanical properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 420 | 810 | 30 |
