Single Core Manganin Electric Resistance Wire Anti Corrosion

Shanghai Tankii Alloy Material Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

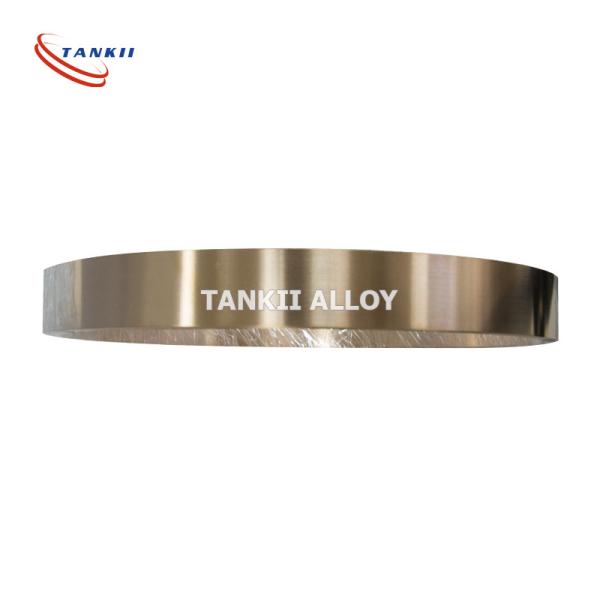

Single Core Manganin Electric Resistance Wire Anti Corrosion

Brand Name : TANKII

Model Number : Manganin Alloy

Certification : JIS,GB,DIN,BS,ASTM,AISI,CTI

Place of Origin : Shanghai,China

MOQ : 20KG

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 600T per moth

Delivery Time : 30days

Packaging Details : on spool,paper box,wooden case/pallet,in coil

Port : Shanghai,China

Brand : Tankii

Mn : 11-13

Ni : 2-5

Cu : Bal

Max Operating Temperature(℃) : 10-80

Density (g/cm³) : 8.4

Resistivity at 20℃(μΩ/cm) : 44

Elongation(%) : ≧15

TCR(x10﹣6/℃) : 0~+40

EMF vs Cu μV/℃(0~100℃) : ≦2

tensile strength (N/m㎡) : soft 343~539 Hard>637

hardness (Hv) : soft 100-172 hard 140-300

Enamel ability : good

application : industry

conductor material : Mn,Ni,Cu

Type : low voltage

insulation material : PVC

rated voltage : 300/500V

conductor type : solid

sheath : PVC

core : single core

rated temperature : -60-200℃

Packing : as request

MOQ : 20KG

Contact Now

Product Description

Manganin is an alloy of typically 86% copper,12% manganese,and 2%nickel.

A resistance alloy with moderate resistivity and low temperature coefficent.The resistance/temperature curve is not as flat as the constantans nor are the corrosion resistance properties as good.

Below alloys can be suppied in the form of round wires in the range 8.0 to 0.02 mm in bare or enamelled condition,also with rayon or silk covering . The product line includes sheets,ribbons,flat wires ,stranded wires,rods and tubes.

Manganin foil and wire is used in the manufacture of resistors,particularly ammeter shunts,because of its virtually zero temperature coefficient of resistance value and long term stability.Several manganin resistors served as the legal standard for the ohm.Manganin wire is also used as an electrical conductor in cryogenic systems,minimizing heat transfer between points which need electrical connections.

Product details

product type strip
carbon content none
shunt material copper strip,manganin
trademark tankii
melting point 1450℃


Single Core Manganin Electric Resistance Wire Anti Corrosion
